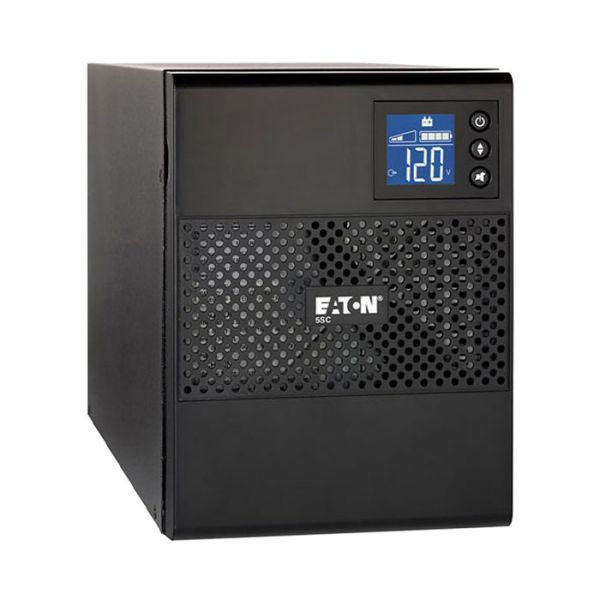

Eaton UPS 5SC 1500i

Be the first to review this product

was EGP18,500.00 Special Price EGP17,000.00

Eaton Line Interactive Pure Sine Wave 5SC UPS, 1500 VA, 1050 W, Input: C14, Outputs: (8) C13, Tower
AVR & Pure Sine Wave output, LCD display, Advanced Battery Management (ABM) technology to increase battery lifetime, Replaceable batteries from the front panel, Monitoring & shutdown software for Windows, Linux

Rating VA:1500
Rating Watt:1050
P.F:0.7
No. Of Outlets:(8) C13
LCD: Yes
Smart USB communication: Yes
Network Card: No
Free Management Software: ipp
Battery Charging Technology: ABM

Runtime Graph

Product specifications

Availability: In stock

SKU

0013403

Details

Product Specifications:

General

General Specifications

PRODUCT NAME	Eaton 5SC UPS
CATALOG NUMBER	5SC1500I
UPC	743172045171
PRODUCT LENGTH/DEPTH	150 mm
PRODUCT HEIGHT	210 mm
PRODUCT WIDTH	410 mm
PRODUCT WEIGHT	15.2 kg
WARRANTY	2 years
COMPLIANCES	CE Marked TUV
CERTIFICATIONS	IEC/EN 62040-1 IEC/EN 62040-2 CE EAC cTUVus

Battery

Battery Information

BATTERY TYPE	Lead-acid maintenance-free (replaceable)
RUNTIME GRAPH	Check the graph above
BATTERY REPLACEMENT	User replaceable
BATTERY QUANTITY	3
BATTERY MANAGEMENT	ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
BATTERY RATING	12 V / 9 Ah
EXTENDED BATTERY CAPABILITY	No

Output

Electrical Output

RECEPTACLE	(8) C13
VOLTAGE	230V
WATTAGE	1050 W
OUTPUT POWER FACTOR	0.7
OUTPUT VOLTAGE RANGE	230 V (+6%/-10%)
OUTPUT WAVEFORM	Sine wave
OUTPUT NOMINAL VOLTAGE	230V default (220/230/240V)
FEED TYPE	1
TOPOLOGY	Line-interactive
VA RATING	1500 VA

Input

Electrical Input

INPUT CONNECTION	C14
INPUT NOMINAL VOLTAGE	230V default (220/230/240V)
NOMINAL FREQUENCY	50/60 Hz
INPUT VOLTAGE RANGE	184-276 V
INPUT FREQUENCY RANGE	45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)

Communications

INCLUDES NETWORK CARD	No
COMMUNICATION	USB port (HID compliant) Serial port (RS232)
ETHERNET INTERFACE	No
USER INTERFACE	LCD Display
POTENTIAL FREE SWITCH CONTACT	No
EXPANSION SLOTS	No
SOFTWARE COMPATIBILITY	Eaton Intelligent Power Protector
TYPE OF INTERFACE	Other

Environmental

ALTITUDE	2000 m
NOISE LEVEL	<40 dB at 1 meter
TEMPERATURE RANGE	0-90% non-condensing
RELATIVE HUMIDITY	0-90% non-condensing

Additional

CONSTRUCTION TYPE	Free standing model
ENCLOSURE	Black
PACKAGE CONTENTS	USB cable Serial cable (2) IEC-IEC cables Quickstart guide Safety instructions
PHASE (OUTPUT)	1
AUTO SHUTDOWN FUNCTION	Yes
COLOR	Black
EFFICIENCY	97
RACK MOUNTING KIT	No
PHASE (INPUT)	1
